Name: SS304L 168mm Johnson VEE-WIRE Water Well Screen Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 6-5/8"
Price: 200.00 USD
Availability: InStock

Haus > PRODUKTE > Wasserbrunnenfilter >

SS304L 168mm Johnson VEE-WIRE Water Well Screen Pipe

SS304L water well screen pipe

168mm Johnson VEE-WIRE screen

stainless steel well screen pipe

Herkunftsort:

Hengshui, Hebei, China

Markenname:

Heng Yuan

Zertifizierung:

ISO9000

Modellnummer:

6-5/8"

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Name:

Johnson VEE-WIRE Wasserbrunnenschutzrohr

Material:

Edelstahl 304L

Durchmesser:

168mm

Länge:

5850mm

Größe der Schlitze:

0.5MM

Verpackungsdraht:

3×4.6mm

Stützstange:

ø6,8 mm

Nr. der Stange:

32NOS

Endverbindung:

Mann/weibliches verlegt

Gewicht:

90KG/Stück

Paket:

Kunststofffolie

Verwenden:

In den Wasserbrunnen zur Sandsteuerung

Verwandte Produkte

Video

10-3/4 Inch SS304 Water Well Screen with #20 Slot

Erhalten Sie besten Preis

Video

219mm Stainless Steel Johnson Water Well Screen 1.0mm Slot

Erhalten Sie besten Preis

Video

Johnson-Typ-Gehäuserohr-Wickelsieb für Wasserbrunnen-Ölbrunnenfilter

Erhalten Sie besten Preis

Video

Edelstahl-Johnson-Drahtsieb-V-Draht-umwickeltes Filterelement

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Kontakt jetzt

Produkt-Beschreibung

SS304L 6-5/8" Johnson VEE-WIRE Water Well Screen Pipe

Product Specifications

Attribute	Value
Name	Johnson VEE-WIRE Water Well Screen Pipe
Material	Stainless Steel 304L
Diameter	168mm
Length	5850mm
Slot size	0.5mm
Wrap wire	3×4.6mm
Support rod	ø6.8mm
NO. of rod	32NOS

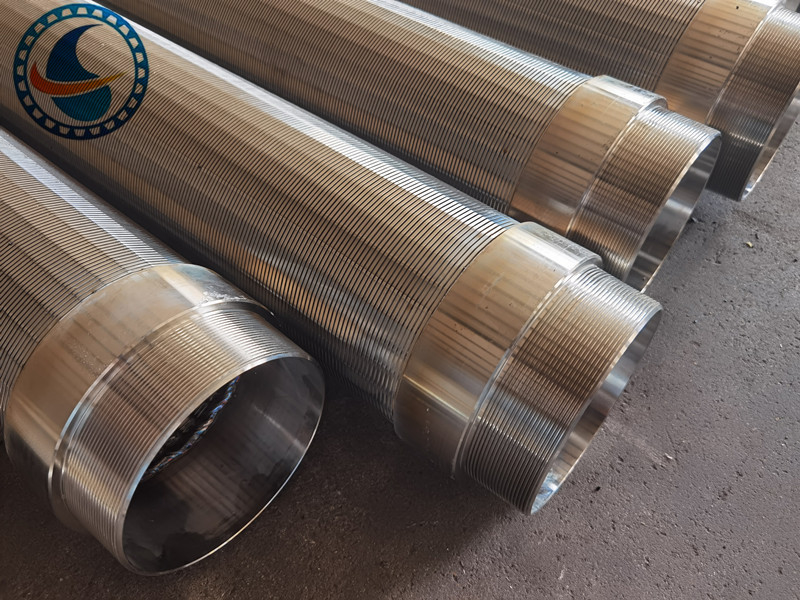

End connection	Male/female threaded
Weight	90KG/piece

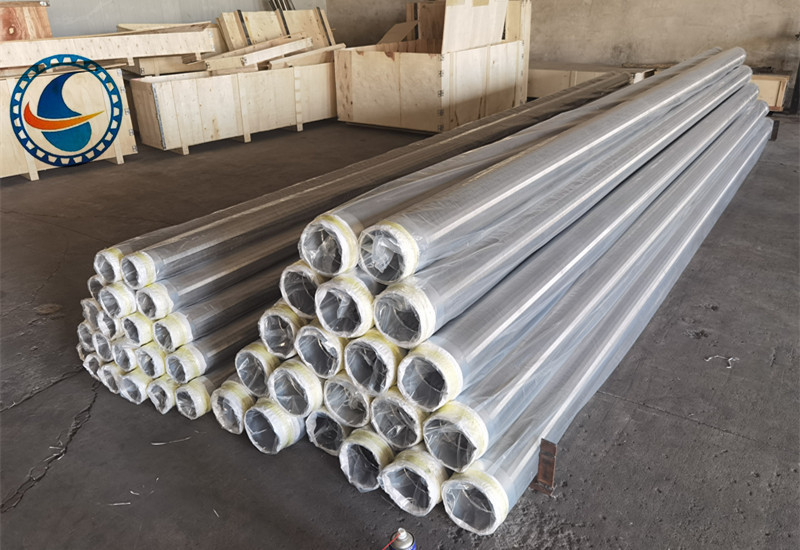

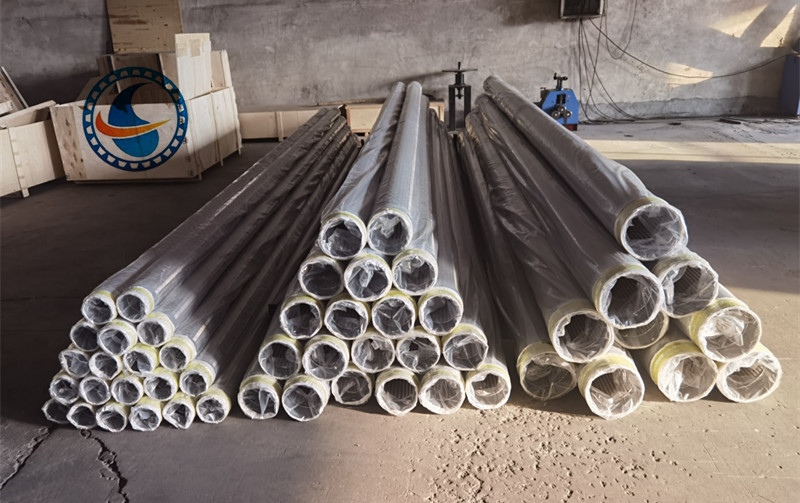

Package	Plastic film
Use	In water wells for sand control

Product Description

Our Johnson VEE-WIRE Water Well Screen Pipe, also known as wedge wire screens or continuous slot water well screens, represents the pinnacle of quality in sand control solutions. Manufactured in our state-of-the-art facility, these screens combine precision engineering with durable non-magnetic stainless steel construction.

Key Features

Available in pipe-base configuration for deep wells and rod-base for shallow wells
Optimized manufacturing processes ensure consistent quality and performance
Streamlined production for reliable on-time delivery
Precision slot sizes from 0.1-100mm available
Custom configurations to meet specific application requirements

Standard Specifications

Name	Johnson VEE-WIRE Water Well Screen Pipe, Continuous Slot Water Well Screen, Oil Well Sand Screen, Wedge Wire Screen
Material	Stainless steel 202, 304, 304L, 316L, Non-magnetic Stainless steel, Low carbon galvanized
Diameter	3", 4", 6", 8", 10", 12", 14", 16", 18" (custom sizes available)
Slot Size	0.1-100mm (standard sizes: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm)
Length	100-6000mm (standard lengths: 2.9m/3m and 5.8m/6m for container shipping)
Wrap Wire	2×3.5mm, 2.2×3.5mm, 3×4.6mm, 3×5mm, 3×6mm, 3×6.5mm, 3.2×6mm, 4×7mm
Support Rod	ø3.0-ø6.0mm round wire or Vee-shaped wire options
End Connections	Welded rings, Plain beveled ends, Male/female threaded, Flange

Industry Applications

Water Well Systems
Food & Beverage Processing
Pharmaceutical & Biological
Refining & Petrochemical
Water Treatment & Separation
Mineral & Aggregate Processing
Pulp & Paper Manufacturing
Environmental Protection
Architecture & Construction
