Stainless Steel Wedge Wire Screen Panels for Food Filtration

stainless steel wedge wire screen

food filtration wire screen panels

wedge wire screen for filtration

Herkunftsort:

Hebei, China

Markenname:

Heng Yuan

Zertifizierung:

ISO9000

Modellnummer:

HY0727003

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produkt-Details

Name:

Keildrahtschirmplatten

Material:

Edelstahl 316L, 304, 321, 2205, 2507

Größe der Schlitze:

0.025mm-100MM

Video Ausgehende Inspektion::

Bereitstellen

Filterbewertung:

75%

Form des Löchers:

Schlitze

Geschäftstyp:

Hersteller

Technik:

Keildraht, Drahtwunde

OEM:

- Ja, das ist es.

Merkmal:

Leckage, Nichtverstopfung, Verschleißbeständigkeit, Korrosionsbeständigkeit

Verwandte Produkte

Video

SS316L Wedge Wire Screen Panels for Petroleum Filtration

Erhalten Sie besten Preis

Video

Ss 316l Keildraht Schirmplatten Schweißschlitz Größe 3,0 mm Niederländisch Gewebe

Erhalten Sie besten Preis

Video

Keil-Draht-Schirm Filter-Johnsons 304 täfelt Edelstahl-Sieb-Biegungs-Schirm

Erhalten Sie besten Preis

Video

Edelstahl 2205 Keil-Draht-Platten SS filtern Profil Johnson Screen

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Kontakt jetzt

Produkt-Beschreibung

SS304 Wedge Wire Screen Panels For Food Filtration

Product Specifications

Attribute	Value
Name	Wedge Wire Screen Panels
Material	Stainless steel 316L, 304, 321, 2205, 2507
Slot size	0.025mm-100MM
Video outgoing-inspection	Provide
Filter rating	75%
Hole shape	Slot
Business type	Manufacturer
Technique	Wedge wire, wire wound
OEM	YES
Feature	Easy leakage, non-clogging, wear resistance, corrosion resistance

Product Description

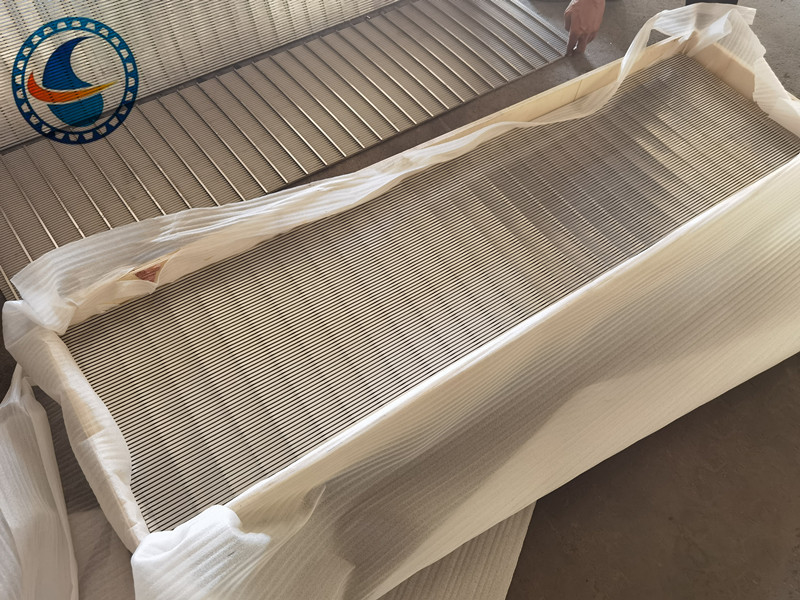

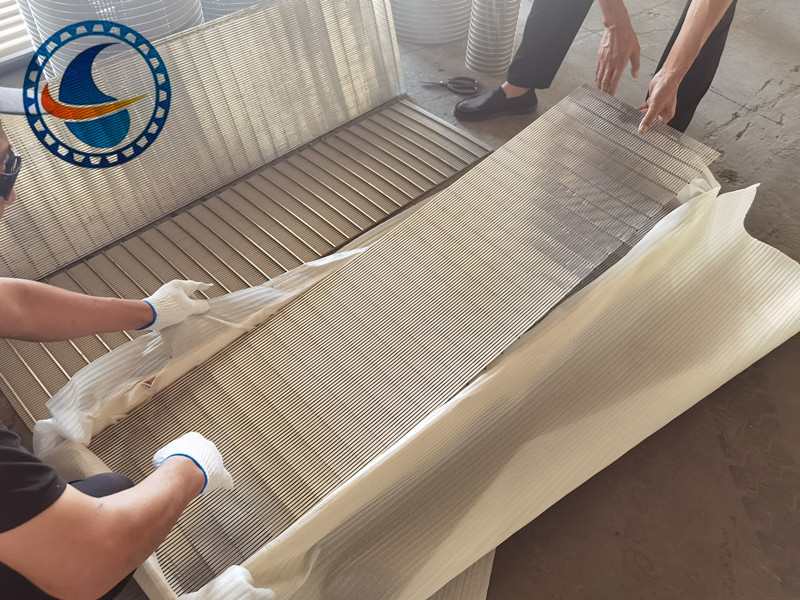

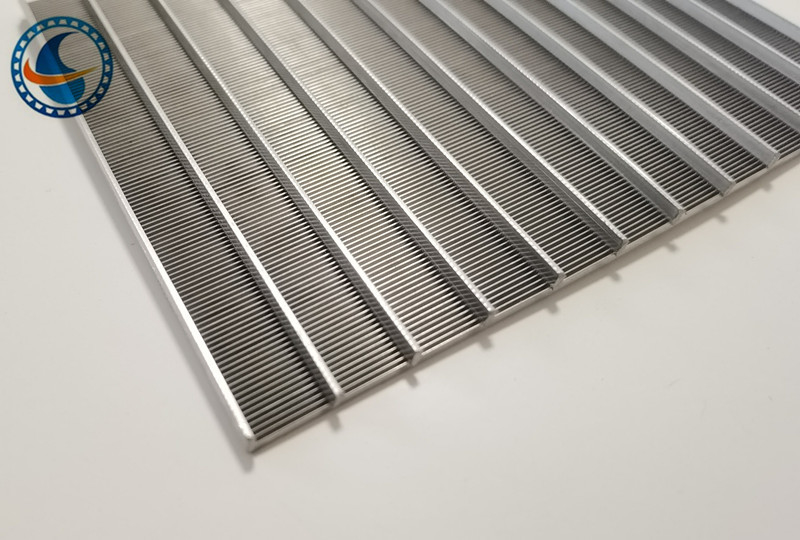

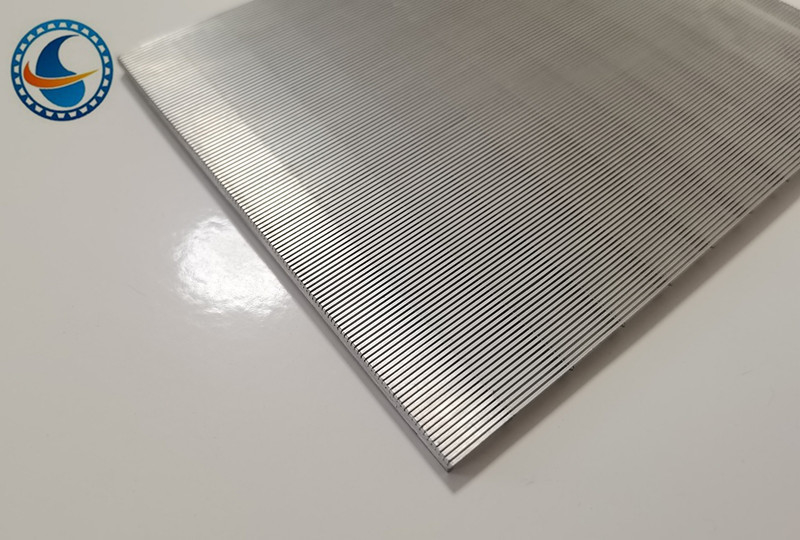

Wedge wire screen panels, also known as wedge wire screen plates, wire wrapped screens, Johnson screen plates, or Johnson screen panels, are constructed with V-shaped profile wires and longitudinal support rods. The unique V-shaped design prevents blockage while ensuring unimpeded water flow.

The consecutive slots provide greater open area, reducing water entry speed. Each intersecting point is fusion welded for sturdy construction and excellent mechanical properties. This design prevents sand from entering the screen under high pressure while allowing slot adjustments based on specific conditions.

Applications

Widely used in various kinds of medium filtering
Water treatment equipment for environmental protection, seawater desalination, and softening treatment
Petroleum industry applications including terminal filters, chemical acid/alkali liquid filters, and ethanol filtration
Organic solution recycling filtration

Technical Specifications

Material: Stainless steel 302, 304, 316, 304L, 316L etc.

Slot: 0.025mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: Width up to 3000 mm, length up to 4430mm

Sizes of the Wire and Rod

Wire Shape	V	V	V	V	V	V
Width(mm)	1.0	1.2	1.5	2.0	2.2	3.0
Height(mm)	2.0	2.0	2.0	3.5	4.5	4.6
Rod Shape	V	V	V	V	V	O
Width(mm)	2.0	2.2	3.0	3.0	3.2	Diameter
Height(mm)	3.0	4.5	4.6	5.0	6.0	3.0~3.8

If you are interested in our product, please contact us for more information.
